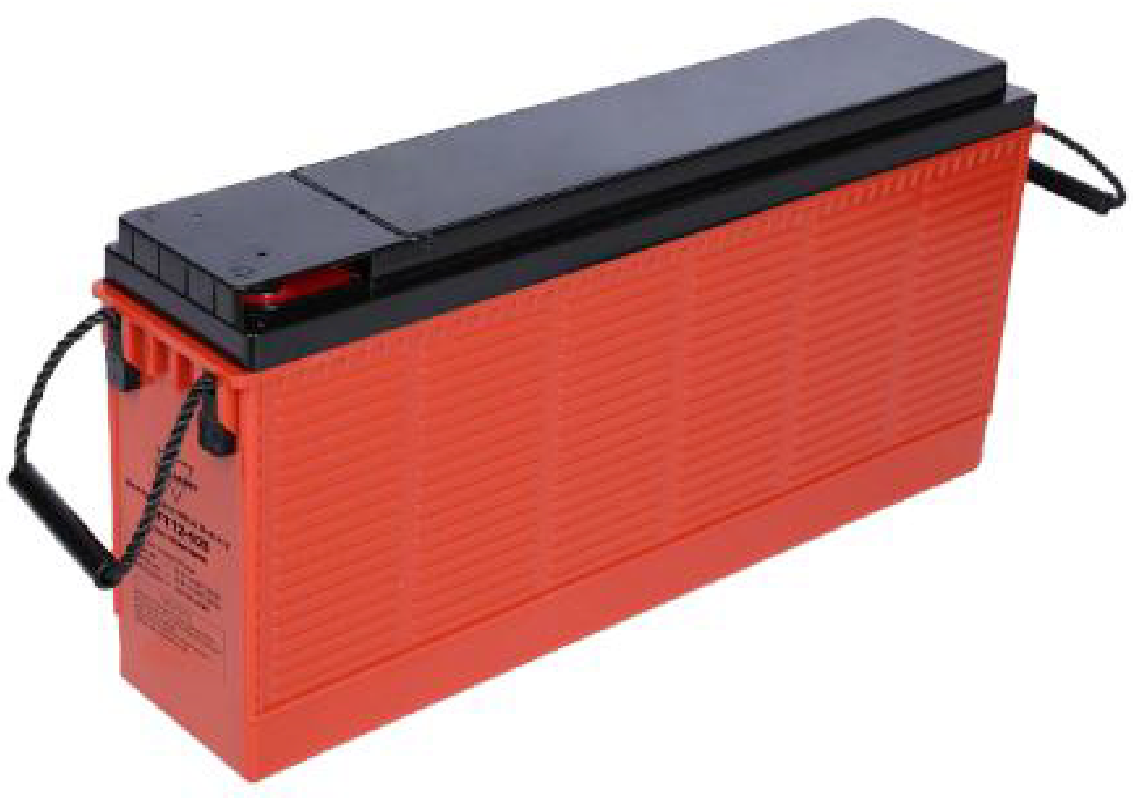

VFT12-105

VALIANT VFT Series is specially designed for telecom use with 8-10 year design life in float service. By adopting a new AGM separator and centralized venting system, the battery can be installed in any position while maintaining high reliability. The dimensions of the VFT series are designed for 19" and 23“ cabinet installation. It is suitable for telecom EPS, applications.

Product Features

Discharge Temperature Range -15 to 45 degrees

Recharge Temperature Range -15 to 45 degrees

Superior Safety Advanced AGM design provides leak-proof operation

Warranty 5 Year Full Warranty

Longer Cycle Life:

Up to 20 times more cycle life and five times the float /calendar life than lead acid batteries, minimizing replacement cost and reducing total cost of ownership.
Light Weight:

About 40% of the weight of a comparable lead acid battery. Footprints offer a 'drop in' replacement for lead acid batteries.
Higher Power:

Delivers up to twice the power of lead acid battery at high discharge rates while maintaining high energy capacity.

Technical Details and Specifications

Specifications

Nominal Voltage

12V

Nominal Capacity

105Ah

Energy

1260 Wh

Cycle Life

10-year float life (standby use)

Charge Voltage

14.4–14.9 V

Float Voltage

13.6–13.8 V

Max. Discharge Current

630 A (5 s)

Peak Discharge Current

630 A (5 s)

Max Charge Current

26 A

Bluetooth Enabled

Self Heated

Series

Yes

105

Terminal

M8 (Female copper insert)

Chemistry

VRLA AGM

Practical Uses and Applications

Telecom Control Equipment

UPS systems, Inverter

Power Equipment

Solar & Wind

Emergency Power Systems

Size and Measurements

Length (mm/in)

394/15.52

Width (mm/in)

110/4.33

Height (mm/in)

286/11.26

Total Height (mm/in)

286/11.26

Weight (kg/lbs)

30.5/67.23
