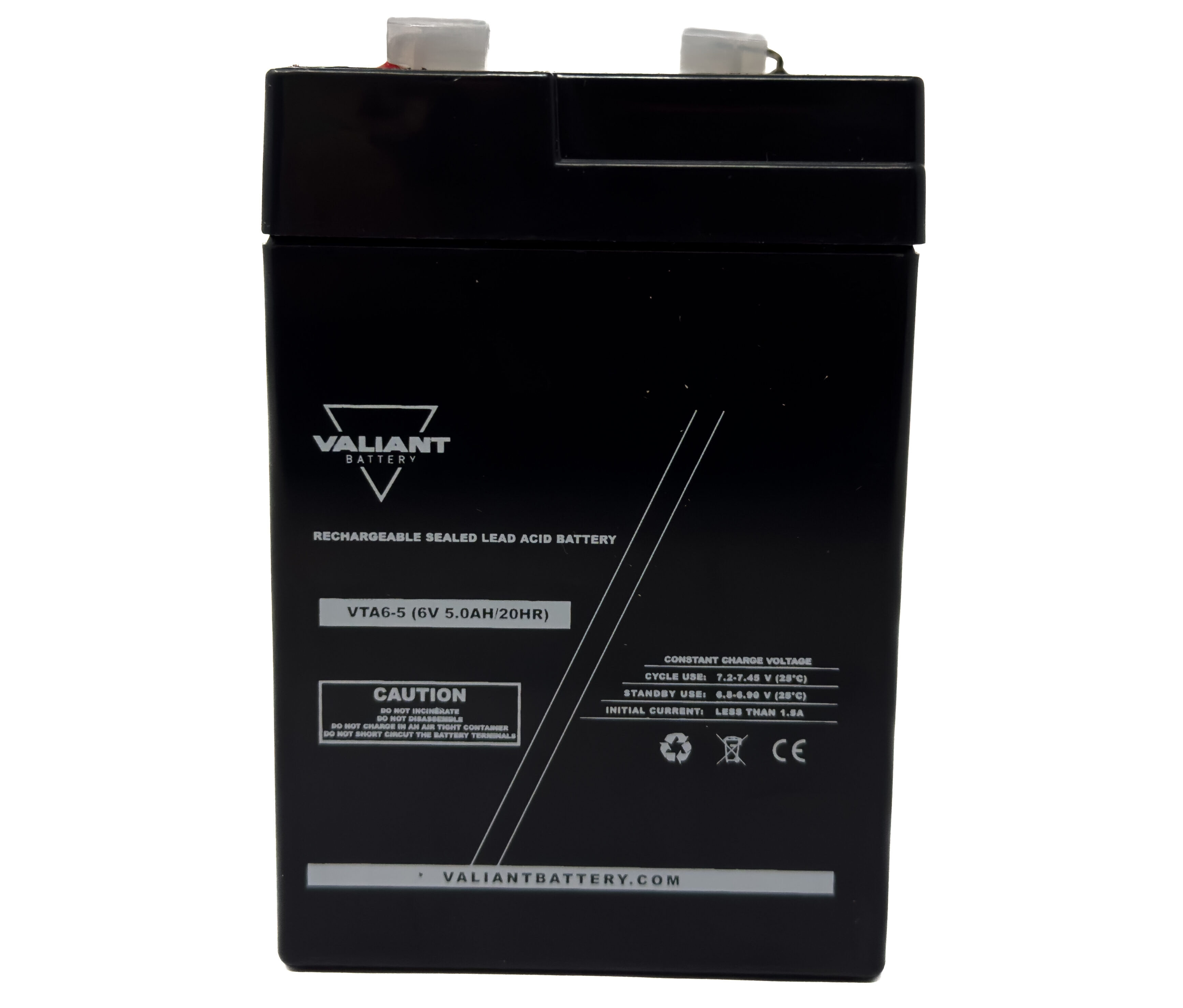

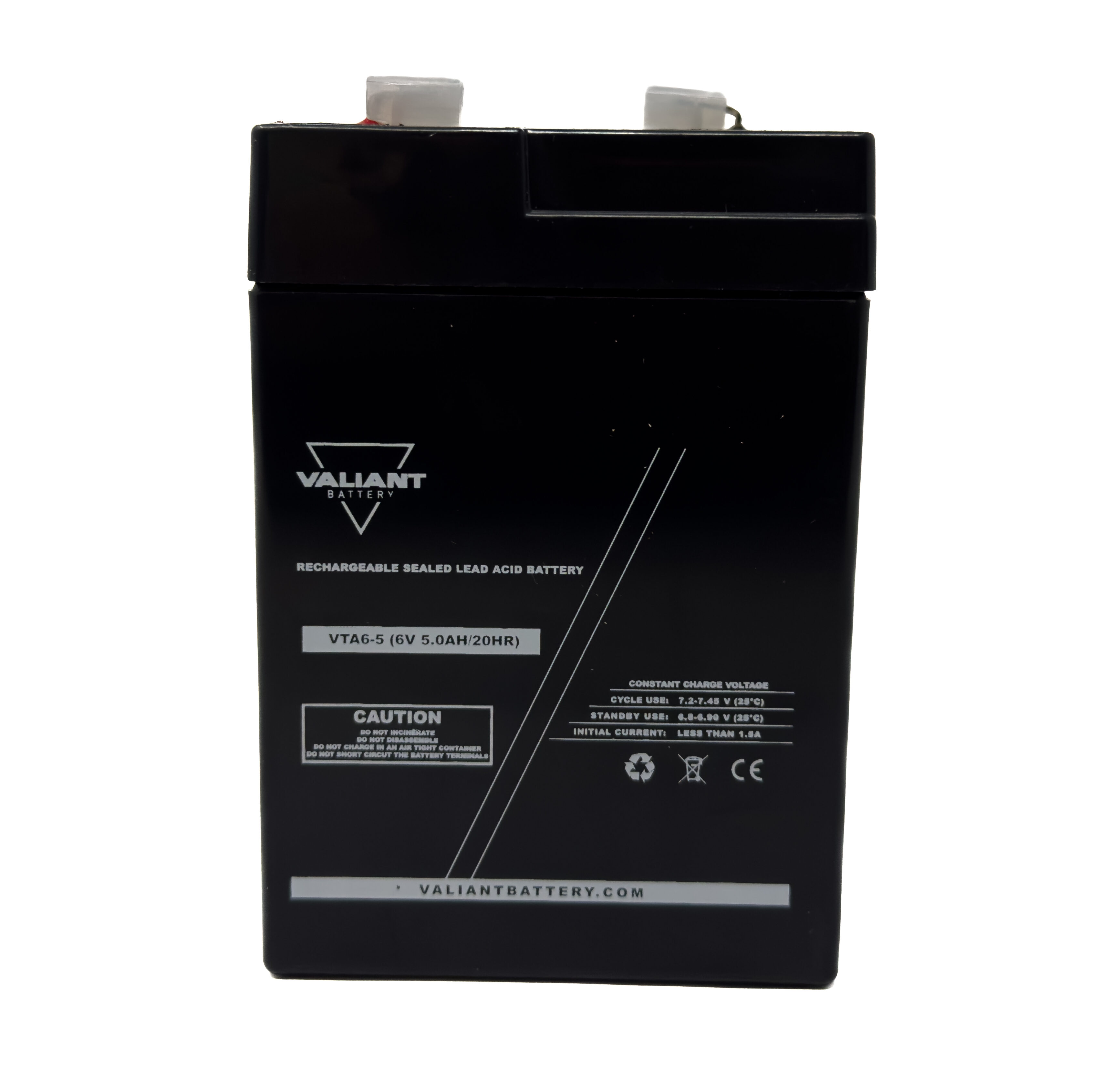

VTA6-5

The Valiant VTA series AGM batteries are designed for float and cycling applications. The VTA series offers a 30% higher cycle life than standard AGM and a 10-year float life that is achieved through a slightly different active paste material and a slightly stronger electrolyte. They are perfectly suited for UPS/Telecom, remote site, and emergency power systems. *new look coming soon!

Product Features

30% more cycle life than competition
Thick Plate Design with high tin/low calcium alloy
10-year Service Life In float applications
High Power Density
Deep Discharge Recovery 700 cycles @ 50% DOD
  • First Class Warranty
    12 Month Warranty
  • Fire resistance ABS
    (UL94-V0)
  • Advanced AGM Separator
    For high pressure cell design

Technical Details and Specifications

Specifications
Volts
6V
AH @ 20HR
5Ah
BCI Group Size
Terminal
F1
Cycle Life to 50% DOD
700 Cycle Times

Practical Uses and Applications

Telecom, controls, remote site
UPS and inverter systems
Solar and wind systems
Emergency backup power systems
RV and Marine

Size and Measurements

Length(mm/in)
70/2.75
Width(mm/in)
48/1.88
Height(mm/in)
101/3.97
Total Height(mm/in)
107/4.21
Weight(kg/lbs)
0.8/2.38

User Guide
