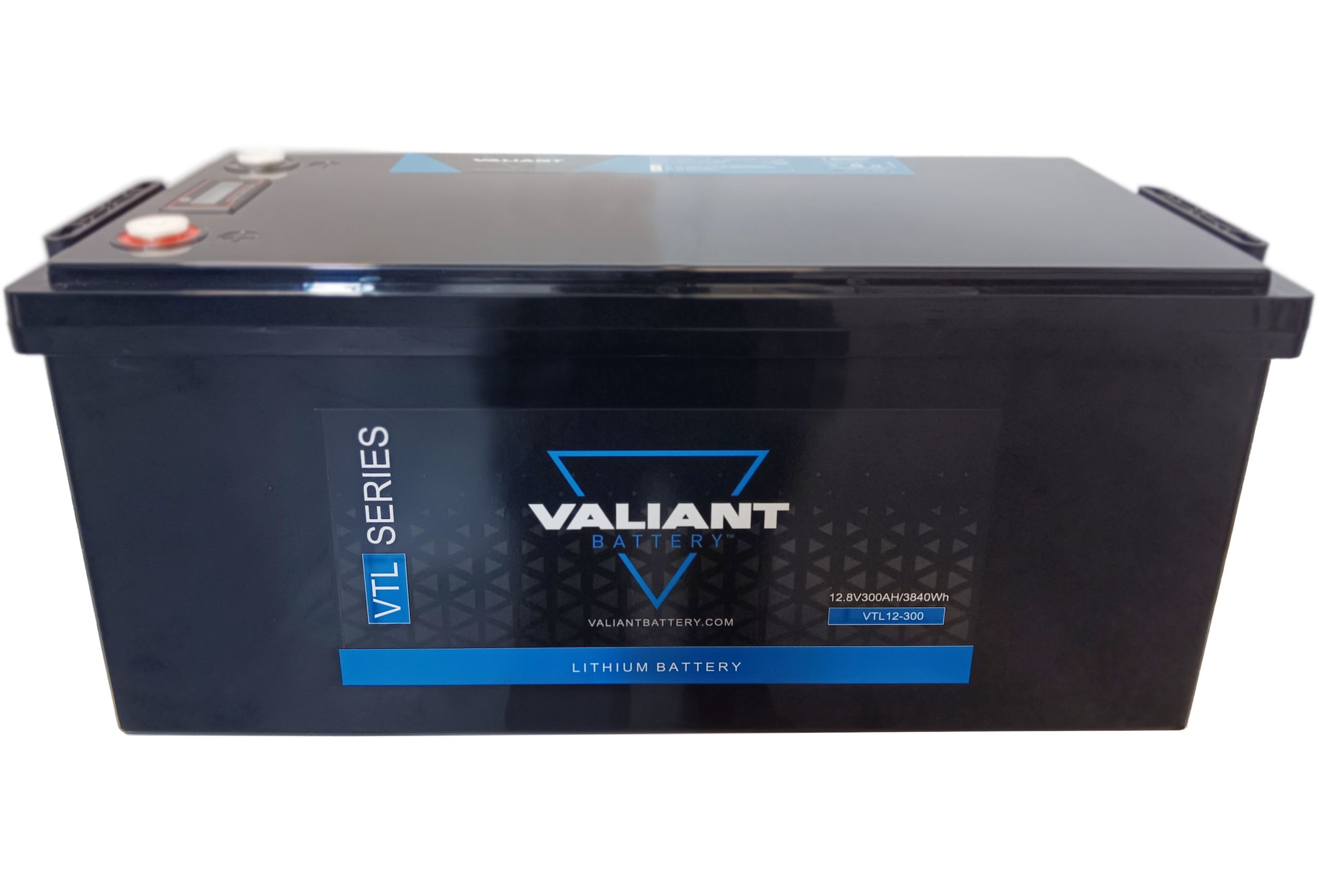

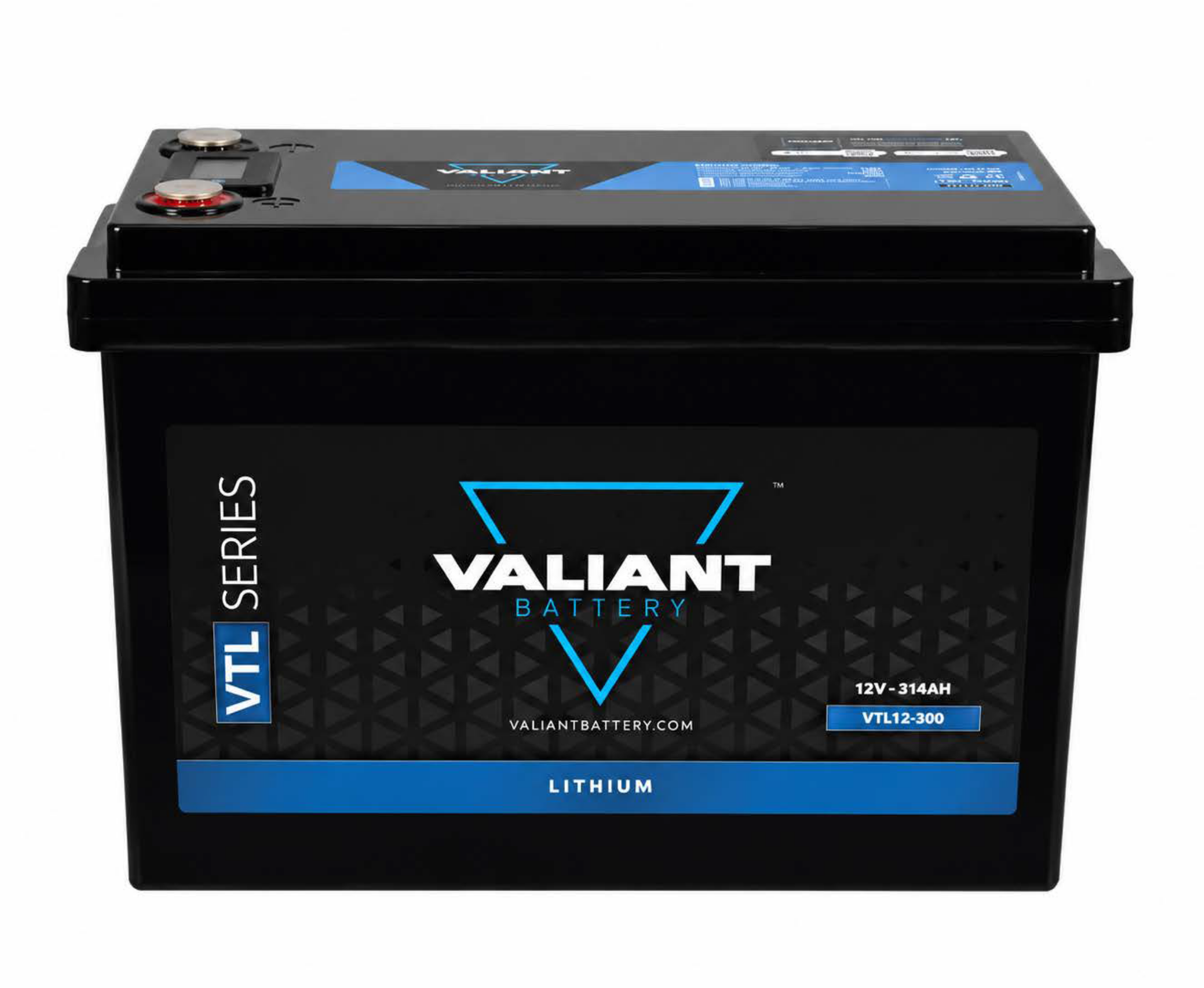

VTL12-300

Introducing the Valiant VTL12-300T VTL Lithium Iron Phosphate battery. ​All Valiant lithium batteries have an upgraded BMS for maximum discharge and recharge capability. *new look coming soon!

Product Features

Discharge Temperature Range -20 to 60 degrees
Recharge Temperature Range 0 to 45 degrees
Superior Safety Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
Warranty 5 Year Full Warranty

Technical Details and Specifications

Specifications
Nominal Voltage
12.8V
Nominal Capacity
300Ah
Energy
3840Wh
Cycle Life
>3000 to 80%
Charge Voltage
14.6V
Float Voltage
13.8V
Max. Discharge Current
200A
Peak Discharge Current
500A/5S
Max Charge Current
150A

Practical Uses and Applications

Electric Vehicles
Electric Mobility
Solar/Wind System
Fish Finders/Trolling Motors
UPS, Backup Power Telecommunication
Medical equipment

Size and Measurements

Length (mm/in)
520
Width (mm/in)
269
Height (mm/in)
220
Weight (kg/lbs)
32
