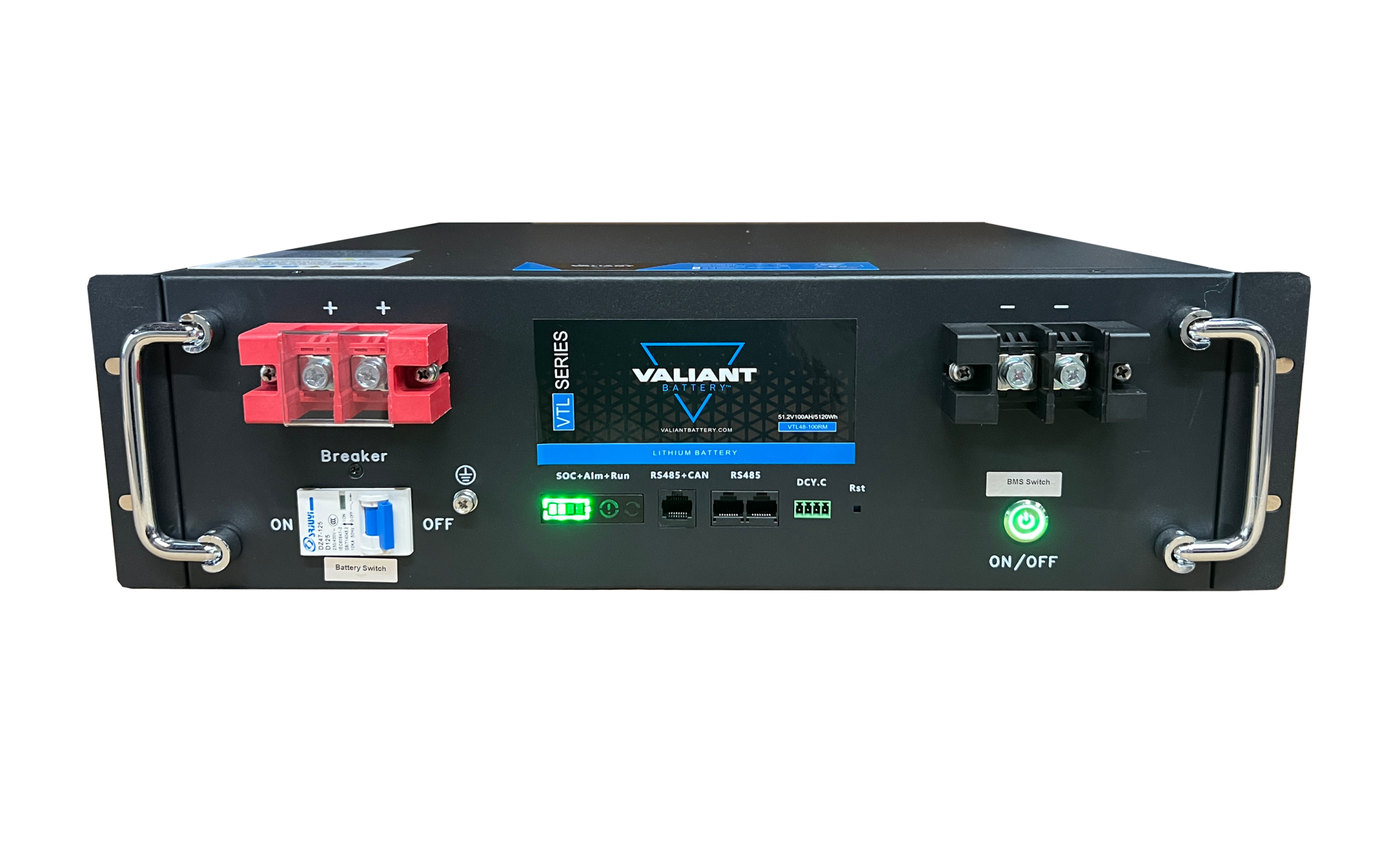

VTL48-100RM
Introducing the Valiant VTL48-100RM Lithium Iron Phosphate battery. Rack-mount 48V solution designed for reliable, consistent power with no voltage drop, faster recharge times, and over 4x the life expectancy of lead acid. With a 100Ah (5.12kWh) capacity, it delivers dependable performance for energy storage applications. Weighing just 99.2 lbs, it’s significantly lighter than comparable lead acid systems. Standard rack-mount design allows for easy installation with no modifications required.
GET THE VALIANT ONE APP
Connect wirelessly and monitor each of your lithium VALIANT batteries without the need for a separate battery monitor.
Product Features
Discharge Temperature Range
-20 to 60 degrees
Recharge Temperature Range
0 to 45 degrees
Superior Safety
Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
Warranty
60 months
Technical Details and Specifications
Specifications
Voltage
51.2V
Capacity (Ah)
100Ah
Capacity (Wh)
5120Wh
Number of cycles
> 3000 cycles at 80% DOD
Charge Voltage Range
57.6 +/-0.2V
Discharge Cut-Off Voltage
44.0V
Max Pulse Current
150A (1S)
Chemistry
Lithium Iron Phosphate (LiFePO4)
Terminal Type
M8
Bluetooth Enabled
Yes
Self Heated
No
Series
No
Parallel
Yes
Practical Uses and Applications
Solar/Wind system
Electric Vehicles
Electric Mobility
UPS, Backup Power Telecommunication
Size and Measurements
Length (mm/in)
442/17.40
Width (mm/in)
483/19.02
Height (mm/in)
133/5.24
Weight (kg/lbs)
45 +/- 0.5kg / 99.21lbs
