VTL12-100 Battery

VTL12-100

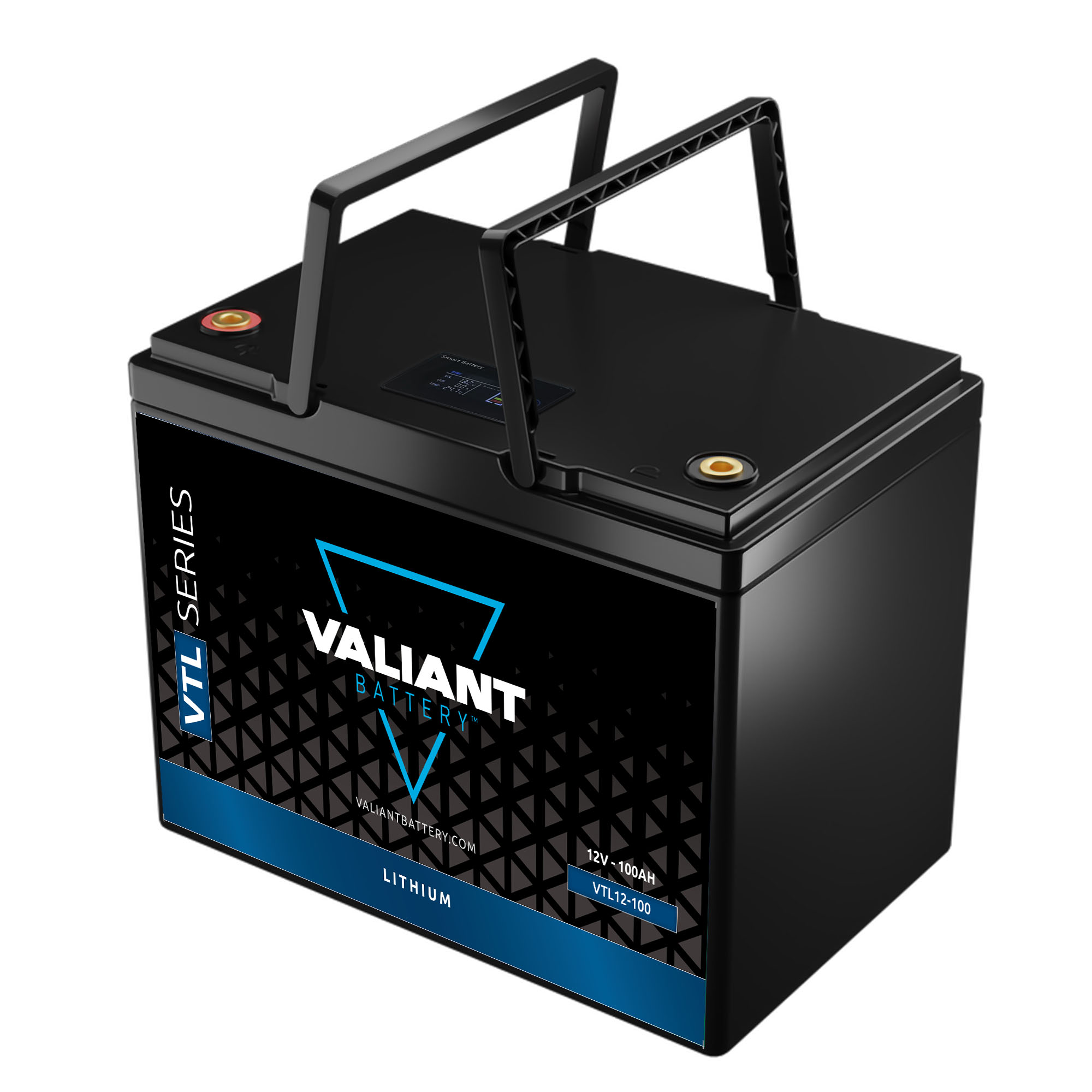

Introducing the Valiant VTL12-100 VTL Lithium Iron Phosphate battery. ​All Valiant lithium batteries have an upgraded BMS for maximum discharge and recharge capability.

Valiant One

GET THE VALIANT ONE APP

Connect wirelessly and monitor each of your lithium VALIANT batteries without the need for a separate battery monitor.

Product Features

Discharge Temperature Range -20 to 60°C
Recharge Temperature Range 0 to 45°C
Superior Safety Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
Warranty 10 Year Full Warranty
  • Longer Cycle Life:
    Up to 10 times more cycle life
  • Light Weight:
    About 40% of the weight of a comparable lead acid battery. Footprints offer a 'drop in' replacement for lead acid batteries.
  • Higher Power:
    Delivers up to twice the power of lead acid battery at high discharge rates while maintaining high energy capacity.

Technical Details and Specifications

Specifications
Nominal Voltage
12.8V
Nominal Capacity
100Ah
Energy
1280WH
Cycle Life
>3000 to 80%
Charge Voltage
14.6
Float Voltage
13.8
Max. Discharge Current
100Ah
Peak Discharge Current
150A/5S
Max Charge Current
100A
Bluetooth Enabled
Yes
Self Heated
No
Series
Yes
Parallel
Yes
Chemistry
Lithium

Practical Uses and Applications

Electric Vehicles
Electric Mobility
Solar/Wind System
Fish Finders/Trolling Motors
UPS, Backup Power Telecommunication
Medical equipment

Size and Measurements

Length (mm/in)
260/10.23
Width (mm/in)
168/6.61
Height (mm/in)
209/8.22
Weight (kg/lbs)
12.5/27.55
