VTL12-200CW

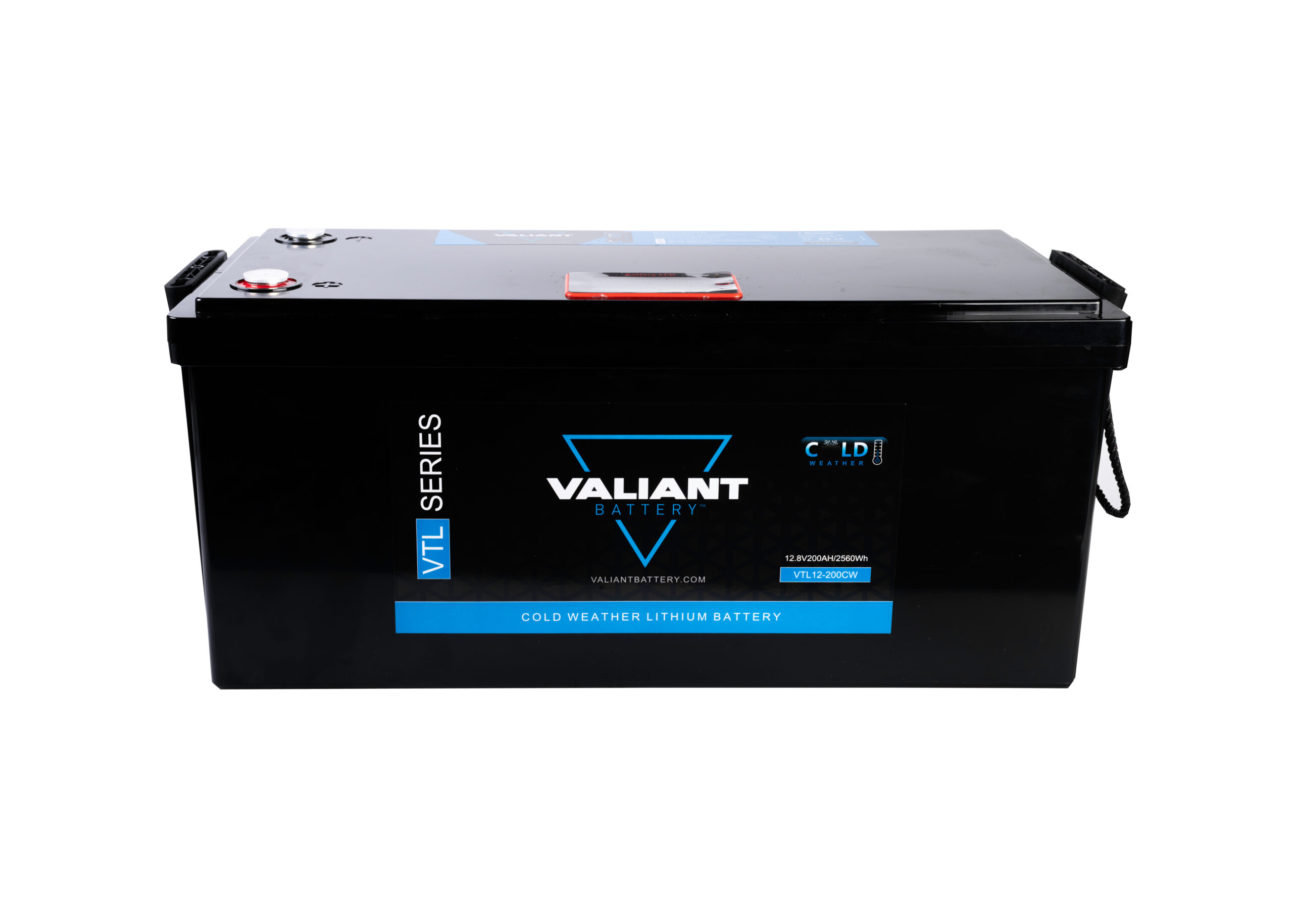

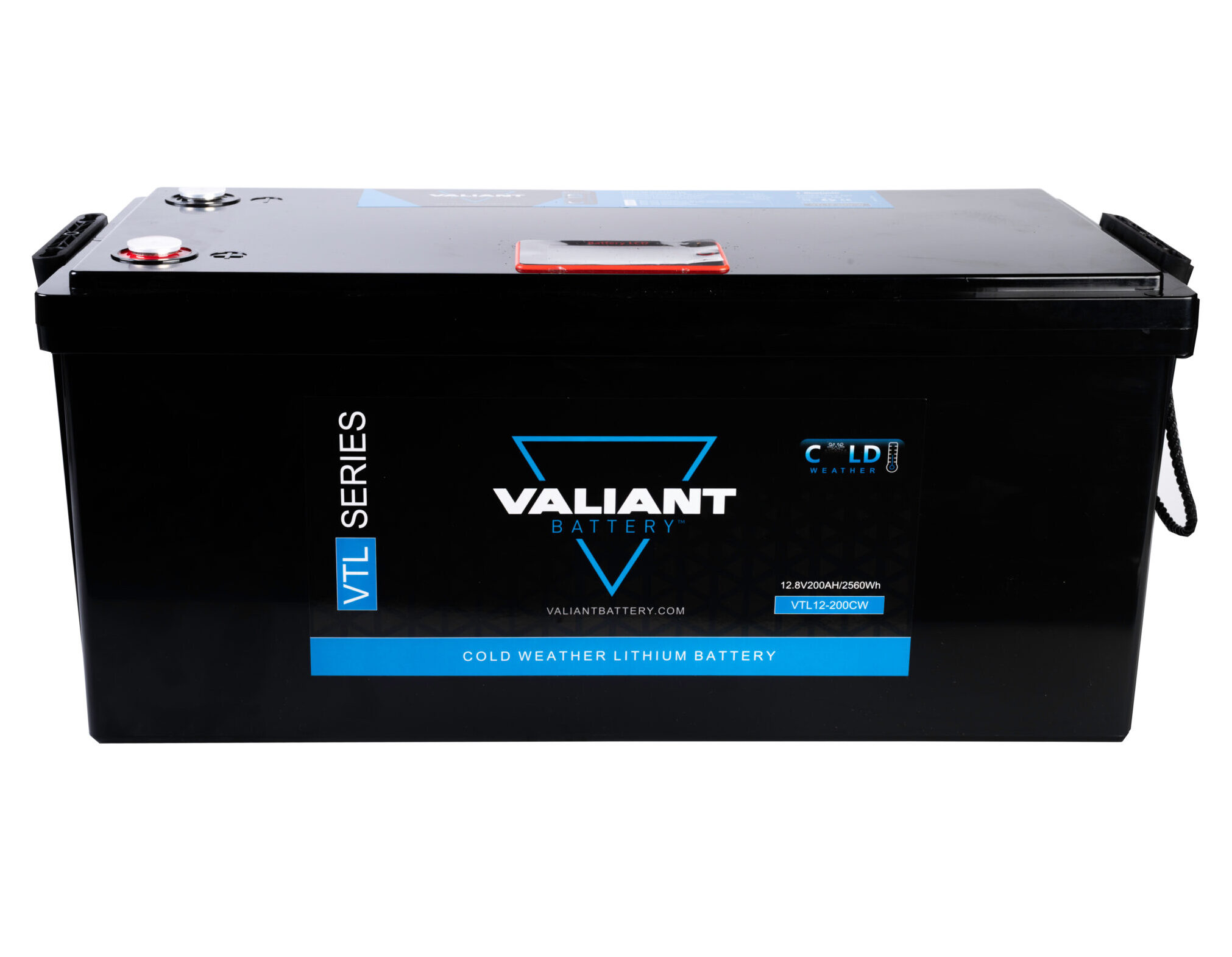

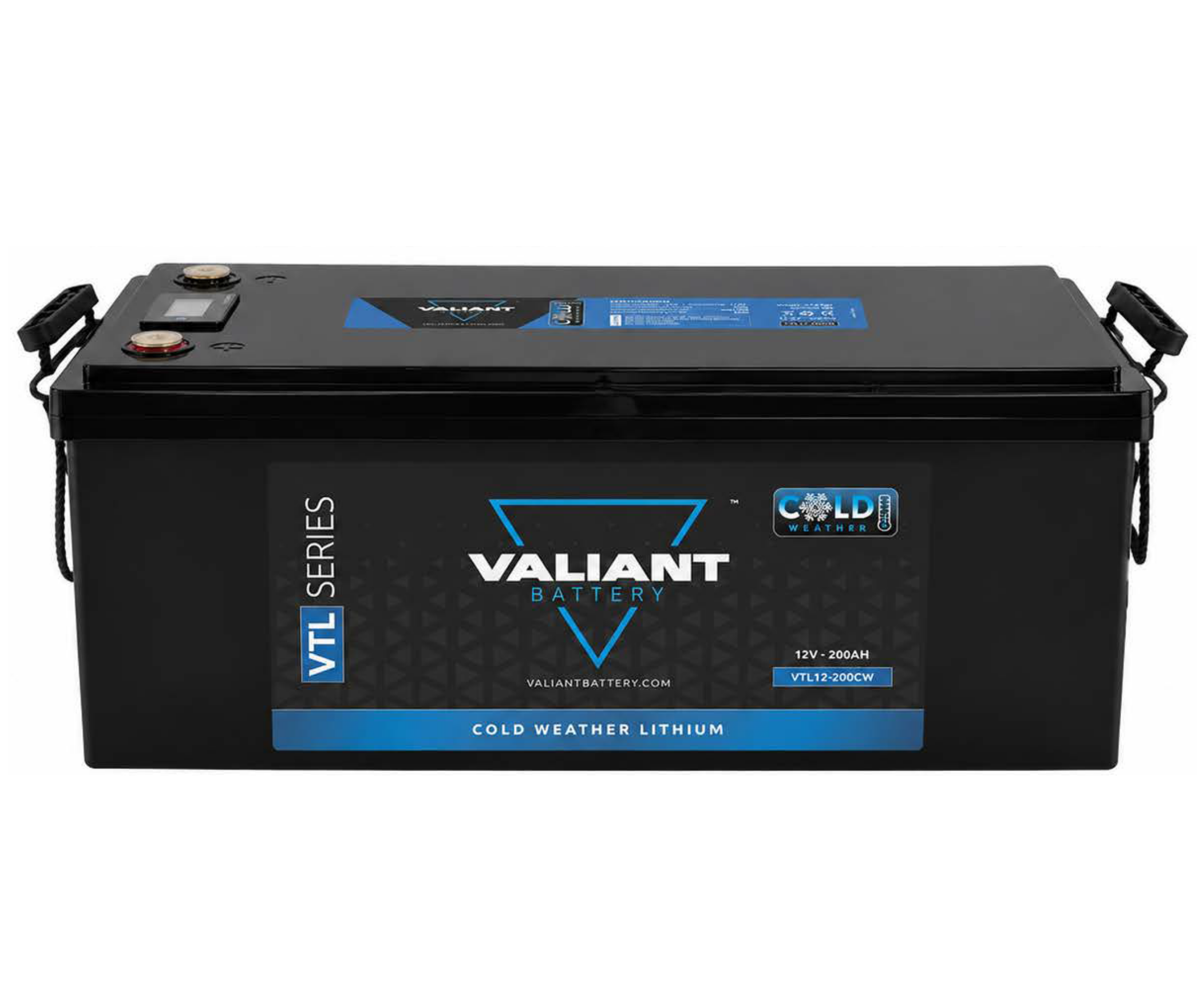

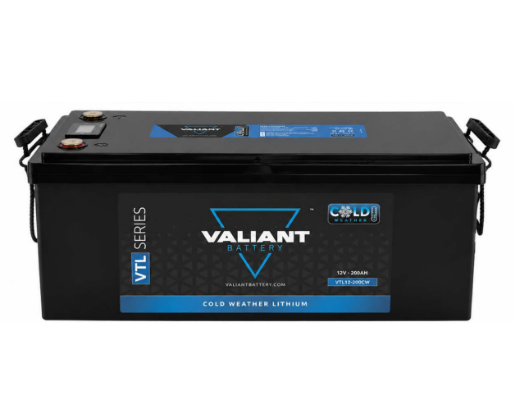

Introducing the Valiant VTL12-200CW VTL Lithium Iron Phosphate battery. Our game changing "Cold Weather" lithium battery that can be discharged down to -20 Celsius and recharged to -30 Celsius thanks to its internal heating film. ​All Valiant lithium batteries have an upgraded BMS for maximum discharge and recharge capability. *new look coming soon!

Product Features

Discharge Temperature Range -20 to 60 degrees
Recharge Temperature Range 0 to 45 degrees
Superior Safety Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
Warranty 5 Year Full Warranty
  • Longer Cycle Life:
    Up to 20 times more cycle life and five times the float /calendar life than lead acid batteries, minimizing replacement cost and reducing total cost of ownership.
  • Light Weight:
    About 40% of the weight of a comparable lead acid battery. Footprints offer a 'drop in' replacement for lead acid batteries.
  • Higher Power:
    Delivers up to twice the power of lead acid battery at high discharge rates while maintaining high energy capacity.

Technical Details and Specifications

Specifications
Nominal Voltage
12.8V
Nominal Capacity
200Ah
Energy
2560Wh
Cycle Life
>3000 to 80%
Charge Voltage
14.6V
Float Voltage
13.8V
Max. Discharge Current
200A
Peak Discharge Current
350A/3S
Max Charge Current
150A

Practical Uses and Applications

Electric Vehicles
Electric Mobility
Solar/Wind System
Fish Finders/Trolling Motors
UPS, Backup Power Telecommunication
Medical equipment

Size and Measurements

Length (mm/in)
485
Width (mm/in)
170
Height (mm/in)
241
Weight (kg/lbs)
25

User Guide
